首先,肝脏研究如何选择合适的病毒载体
慢病毒、腺病毒和腺相关病毒(AAV)等都是常用的工具病毒载体,在肝脏研究中如何选择合适的病毒工具呢?
1. 慢病毒:慢病毒具有毒性低、损伤小的特点,且病毒感染细胞后,可以整合入基因组长期表达,是细胞实验的首选。应用于在体注射时,引起的免疫反应较为温和。
2. 腺病毒:腺病毒载体容量大,不整合到染色体中,无插入致突变性。但表达时间短,在大部分细胞中,腺病毒可维持7-14 天的表达时间。且免疫原性高,应用于在体注射时易造成炎症反应。
3. 腺相关病毒AAV:AAV 体积小,滴度高,扩散性好,是在体实验的首选。AAV有多种血清型,不同的血清型对不同的脏器有较高的识别及感染能力,其中AAV2型、8型、9型等对肝脏有较好的趋向性。
了解了这些病毒载体在肝脏研究中的优势和不足后,如何根据实验目的来挑选合适的基因操作工具呢?建议您可以从以下这几个方面出发:
1. 工具载体的表达时间与实验观察时间是否相符;
2. 工具载体可以容纳的片段大小与目的基因大小是否契合;
3. 工具载体对目的细胞、在体组织的转导是否足够高效。
病毒表达系统 | 慢病毒 | 腺病毒 | 腺相关病毒 |
外源基因表达时间 | 2-4天开始表达长时间稳定表达 | 1-2天开始表达持续7-14天 |
7-14开始表达 细胞分裂不旺盛部位可长时间表达 |
插入片段大小 | <4kb | <5-8kb |
<2.8kb (包括必须的启动子 以及荧光或者标签元件) |
稳定细胞株筛选 |
可以,外源基因整合于 宿主基因组,筛选简单 |
不可以,瞬时表达外 源基因传代后效果减弱 |
不可以 |
细胞实验 | 首选,广谱,感染效率高 |
广谱,感染效率高, 适合原代非增殖细胞感染 |
不适合细胞实验 |
动物实验 | 适合,根据观察时间和注射部位选择 |
较适合(免疫原性高),根 据观察时间和注射部位选择 |
首选,根据观察时间和注射部位选择 |
滴度 | 最高可达109TU/ml | 高达1012pfu/ml | 高达1012-13v.g/ml |
常用基因操作工具选择指南
吉凯小建议:
1. 在基因大小允许的前提下,在体实验建议优先选择腺相关病毒(AAV)。AAV具有滴度高,扩散效果好,免疫原性低等特点,且AAV有多种血清型,2型、8型、9型等对肝脏有较好的趋向性。点击了解更多AAV血清型选择小窍门>>
|
1 | 2 | 5 | 6 | 8 | 9 | DJ | PHP.eB | PHP.S | Retro |
心脏 | √ |
|
|
√ |
|
√ |
|
|
|
|
肝脏 |
|
√ |
|
|
√ | √ | √ |
|
|
|
肺 |
|
|
√ | √ |
|
√ |
|
|
|
|
胰腺 |
|
|
√ |
|
√ | √ |
|
|
|
|
骨骼肌 | √ | √ |
|
√ | √ | √ |
|
|
|
|
神经 | √ | √ | √ |
|
√ | √ |
|
√ | √ | √ |
眼部 |
|
√ | √ |
|
√ | √ | √ |
|
|
|
AAV 血清型的趋向性
2. 细胞体外感染建议选择慢病毒:慢病毒在感染细胞后2-4 天开始表达,且对细胞毒性低、损伤小。
3. 如需目的基因在肝脏中特异性表达,可使用组织特异性启动子,如肝脏特异性启动子TBG。吉凯提供组织特异性启动子载体的病毒包装服务,点击了解>>
病毒工具在肝脏中的的注射方法
肝脏常用的注射方法有尾静脉和肝门静脉注射,两种注射方法用量类似。下面以肝原位注射为例详细说明。
1. 腹部切开后,寻找到肝门静脉:将肝叶提起,下面就是门静脉,因为下腔静脉在后方,离肾脏比较近,所以,一般看到的大的静脉就是门静脉。
2. 注射病毒,穿刺后压迫止血。
肝门静脉病毒注射示意图
肝脏注射病毒用量参考
以下表格中注射参数来自吉凯客户发表文献。更多肝脏病毒注射参数,点击查看与下载>>
1. 慢病毒
注射部位 | 注射参数 | 检测时间 | 文献 |
大鼠肝门静脉注射 |
500μL 病毒滴度5x 107 TU/mL 2.5x 107TU |
14天 | Effect of the regulation of retinoid X receptor - α gene expres-sion on ral hepatic fibrosis[J]. Hepatology Research, 2011. |
大鼠肝门静脉注射 |
100μL 3x 108TU 每4天注射一-次,共3次 |
26天 | Inhibition of hepatic sellate cell activation and liver fibrosis by fat-specific protein 27[J]. Molecular and cellular biochemistry, 2012. |
大鼠静脉注射 |
500 μL 病毒滴度5 x 107 TU/ml 2.5x 107TU.注射时间7s |
14天 |
Peroxisome proliferator
-activated receptor gamma inhibits he-patic fibrosis in rats[J].
Hepatobiliary & Pancreatic Diseases International, 2011. |
小鼠尾静脉注射 | 4x 108TU | 2-3天 | Construction of a lentiviral vector containing shRNA targeting ADAM17 and its role in attenuating endotoxemla in mice[J]. Molecular medicine reports, 2017. |
小鼠尾静脉注射 | 5x 107IU |
|
Hepatitis B virus X protein
induces hepatic steatosis by en-hancing the expression of liver fatty acid
binding protein[J]. Jourmal of virology, 2016. |

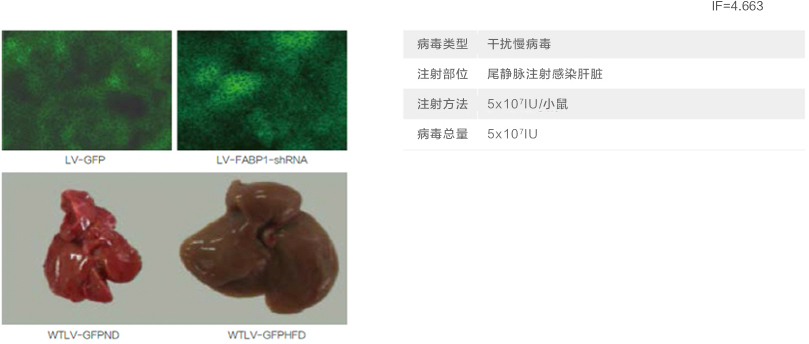

代表文献 吉凯客户文章Jourmal of viology,2016,90(4):1729-1740
2. 腺病毒
注射部位 | 注射参数 | 检测时间 | 文献 |
大鼠尾静脉注射 | 5 x 109PFU/大鼠 |
|
Paired related homeobox protein 1 regulates PDGF-induced chemotaxis of hepatic sellate cells in liver fibrosis[J]. Laborato-ry Investigation, 2017. |
大鼠尾静脉注射 |
100μl,生理盐水稀释 总量1 x 1010病毒颗粒 |
1天、2天 | Recombinant adenovirus containing hyper-interleukin-6 and hepatocyte growth factor ameliorates acute-on-chronic liver failure in rats[J]. World journal of gastroenterology, 2016. |
小鼠尾静脉注射 |
|
|
Decreased MiR- 155 level in the peripheral blood of non-alco-holic fatty liver disease patients may serve as a biomarker and may influence LXR activity[J]. Cellular Physiology and Bio-chemistry, 2016. |
小鼠尾静脉注射 |
5 x 108PFU 一周一次,共2次 |
17天 | Hepatic SATB1 induces paracrine activation of hepatic stellate cells and is upregulated by HBx[J] .Sci Rep, 2016. |
小鼠尾静脉注射 |
100 μl.总量 2.5x108PFU |
14天 | Adenovirus-mediated over-expression of Septin4 ameliorates hepatic fibrosis in mouse livers infected with Schistosoma japonicum[J]. Parasitol. Int, 2015. |

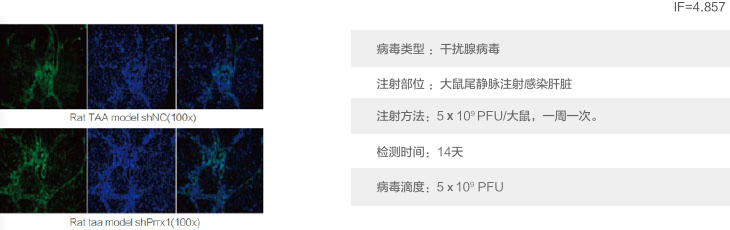

代表文献(36)吉凯客户文章Laboratory Investigation,2017,97(9):1020
3. 腺相关病毒
注射部位 | 血清型 | 注射参数 | 检测时间 | 文献 |
大鼠肝动脉或 门静脉原位注射 |
|
2x 1011病毒颗粒或 感染2x 1011AAV 颗粒的骨髓间充质干细胞 |
7, 14,21,28天 | Mesenchymal Stem Cells with EnhancedBcl-2 Ex-pression Promote Liver Recovery in a Rat Model of Hepatic Cirrhosis[J]. Cellular Physiology and Bio-chemistry. |
小鼠尾静脉 | AAV9 |
1 x 1011viral particles/mouse |
2周 | The histone demethylase KDM4D promotes hepatic fibrogenesis by modulating Toll-like receptor 4 sig-naling pathway[J]. EBioMedicine |
小鼠尾静脉 | AAV9 | 1 x 1011病毒颗粒/小鼠 | 2周 | The Histone Demethylase KDM4D Promotes He-patic Fibrogenesis by Modulating Toll-Like Receptor 4 Signaling Pathway[J]. bioRxiv |
小鼠尾静脉 |
|
2x 109PFU |
|
CARF activates beta-catenin/TCF signaling in the hepatoellular carcinoma[J] Oncotarget |

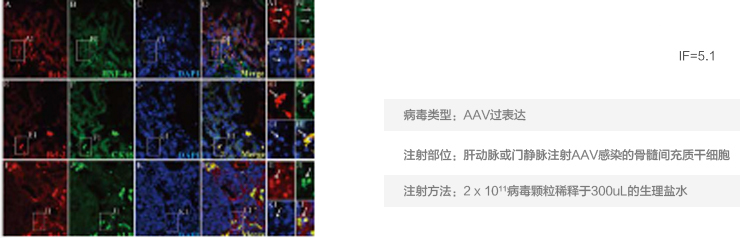

代表文献 吉凯客户文章Cellular physiology and biochemistry,2016,40(5):1117
